Max Flow UV Replacement Lamp

4.7 out of 5 Customer Rating

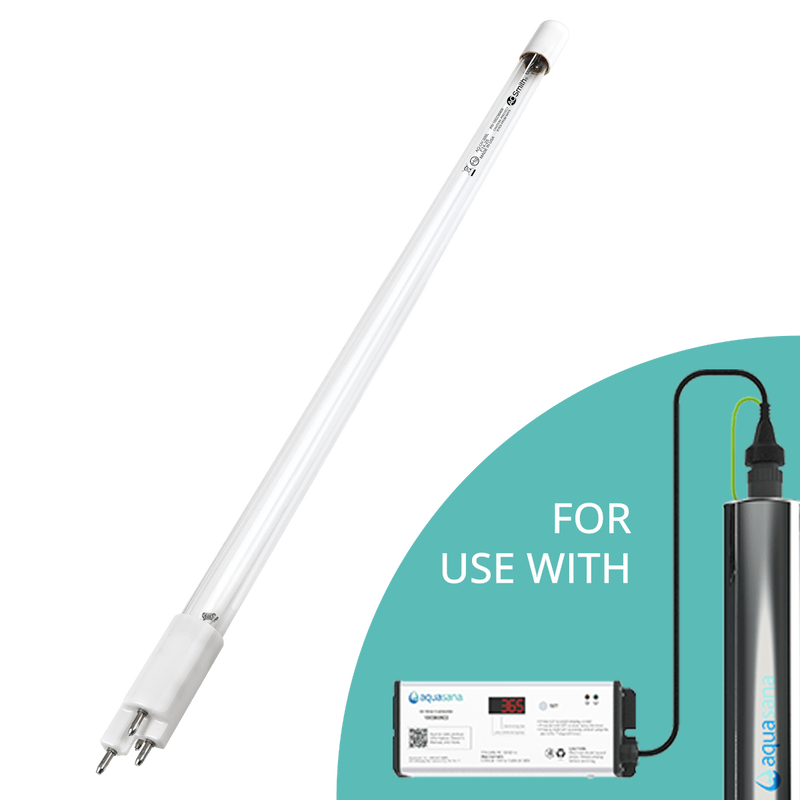

UV Replacement Lamp (AQ-UV-510L) for Aquasana's Max Flow UV Filter to sterilize up to 99.8% of bacteria and viruses in your water.

See Product Specifications
Availability:
  • In Stock
100236796 AQ-UV-510L
price
$146.99
Water for Life® Price
$124.94 15% OFF + Free Shipping!

Genuine Aquasana Replacements

Ultimate Protection

AQ-UV-SF system is NSF/ANSI 55 Class B Certified to sterilize bacteria and nonpathogenic viruses for peace of mind.

Value & Convenience

This Replacement Lamp gives you 12 full months of UV-filtered water throughout your entire home.

Eco-Friendly

Purifies water using different frequencies of ultraviolet light, preventing harmful chemicals from entering the environment.

Innovative Technology

UV Technology

UV Technology

UV filtration generates light artificially to target microbes in your water, like bacteria and viruses, preventing them from reproduction.

Chemical-Free

Chemical-Free

Certified to sterilize bacteria and viruses without the use of harsh chemicals or chlorine.

Low Maintenance

Low Maintenance

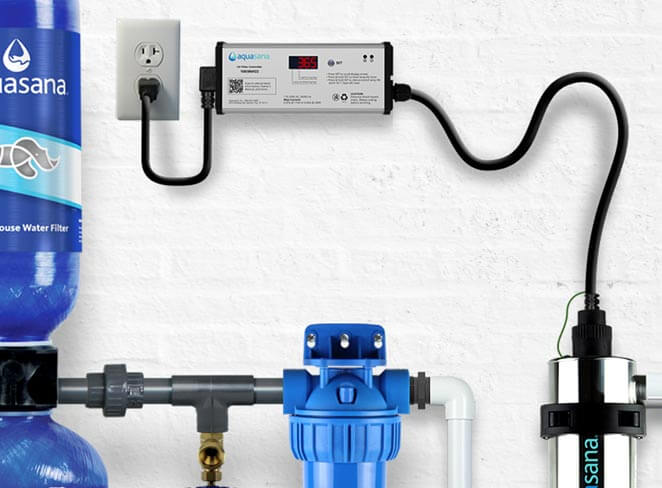

Audible reminder and digital countdown timer lets you know when it's time to change the bulb.

Pure Performance

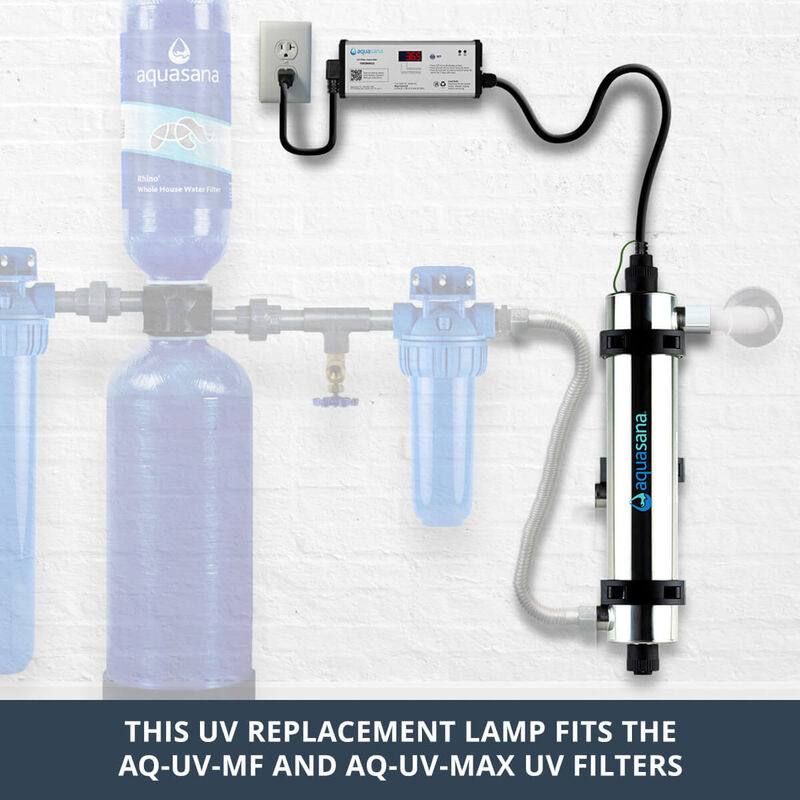

This Replacement Lamp for the Max Flow UV Filter (AQ-UV-MF and AQ-UV-MAX) sterilizes up to 99.8% of bacteria and nonpathogenic viruses at 19 gpm and lasts for 12 months. When this Replacement Lamp is used in the UV system, it is NSF/ANSI 55 Class B Certified.

This filter is perfect for anyone on a well-water system or for anyone looking for a last line of defense to protect your drinking water.

If you purchased your system between July 2019 and April 2026, click here for the AQ-UV-L420C Replacement Lamp.

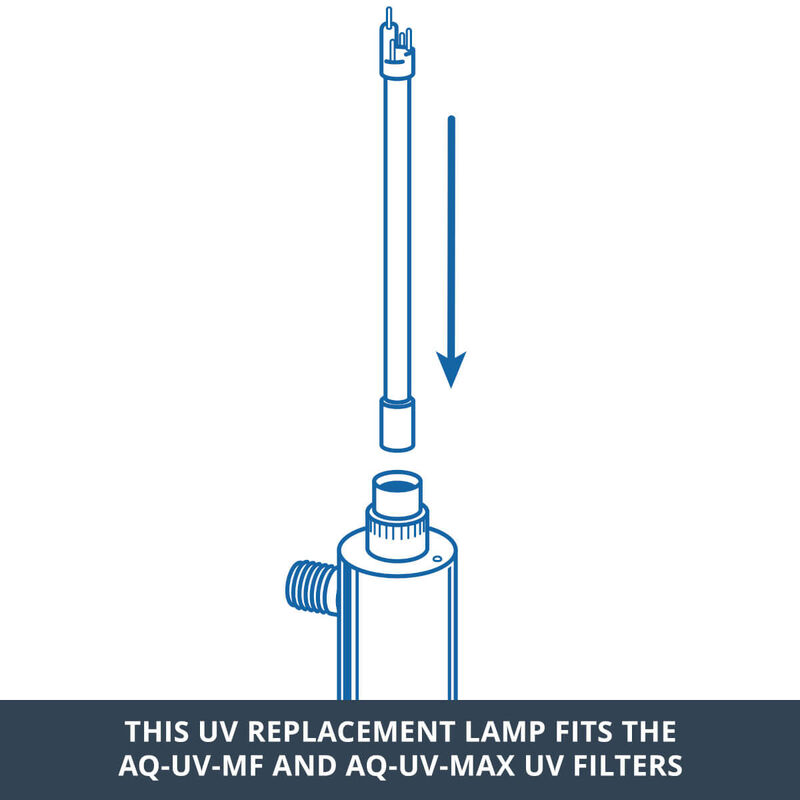

Replacements are straightforward and do not require a plumber.

Capacity (Years):
1 year
Peak Flow Rate:
32.0 gpm
Rated Flow Rate:
19.0 gpm
Product Dimensions:
17.4" x 0.6" x 0.6" (L x W x H)
replacement filter

Max Flow UV Filter

Sterilize up to 99.8% of bacteria and viruses in your water. Make your entire home a healthy home.

Have a question? Give us a call or send us an email.

866-662-6885 Email Us

Customer Service

  • Mon - Fri 8AM - 6PM CT
  • Sat 9AM - 5PM CT

Sales

  • Mon - Fri 8AM - 6PM CT
  • Sat 9AM - 5PM CT
replacement filter

Need a water filter?

Water filters are an effective way to provide your household with healthy, great-tasting water. Remove up to 97% of chlorine from every tap in your home.

Shop Whole House
water for life logo

Get filters auto-delivered right when you need them — plus receive 15% off the price of replacement filters, free shipping, and an extended limited warranty on your filtration system. Protect your investment and save money with our no-contract Water for Life® program.

Learn More
Reviews
Questions
FAQ
Aquasana FAQs
1. Do I need a plumber to replace the UV filter?
Our replacement filters are designed for DIY replacements – no plumber is required. Please read through the owner's manual carefully before attempting to replace your filters. If you have any questions or need assistance, our technical support representatives at 866-662-6885 can walk you through the installation process.
The UV Filter Replacement Lamp should be replaced every 12 months.
If you purchased your Max Flow system between July 2019 and April 2026, you will use the AQ-UV-L420C Replacement Lamp. Otherwise, you will use this AQ-UV-510L Replacement Lamp.
Aquasana's UV filters are independently tested to sterilize up to 99.8% of bacteria and nonpathogenic viruses for peace of mind. UV filtration is more effective and more eco-friendly than chemical disinfection processes at sterilizing these contaminants.
Because bacteria and viruses are more prevalent in homes that use well water, our Rhino® Well Water with UV comes standard with an ultraviolet filter specifically designed to render bacteria and viruses inactive. The UV Filter safely sterilizes up to 99.8% of bacteria and nonpathogenic viruses. For homes using city water, we offer the UV Filter as an add-on to our whole house filters that provide supplemental bactericidal treatment.
UV filters are extremely economical to operate. A typical 10 gallon per minute (gpm) UV filter operates on the same power requirements as a 40-watt light bulb.
No, UV is a physical disinfection process. It does not change the taste or odor of the water. It simply provides safe, reliable disinfection while adding nothing to your water.
No, the UV filter should be left on whether you are using water or not. The lamp ages regardless of the amount of water drawn through the system. By leaving the unit on, you will eliminate the potential problem of having bacteria and viruses pass through the filter while the unit is off. However, if water is drained from your disinfection system, your UV filter must be switched off.
UV lamps have a powerful life of approximately 9,000 hours, which means that the lamps require annual replacement. The UV light may offer illumination beyond 1 year; however, there will not be enough UV energy to provide adequate disinfection. Proper maintenance of any pre-treatment is also required. Additionally, the sleeve must be cleaned at least once a year.
Yes, our UV filter is designed for water that has already been filtered through a home filtration system and not as a standalone unit. For UV filters to be effective, it is recommended that the influent water contain the following:
  • Iron < 0.3 ppm (0.3 mg/L)
  • Manganese < 0.05 ppm (0.05 mg/L)
  • Hardness < 7gpg
  • Tannins < 0.1 ppm (0.1 mg/L)
  • Turbidity < 1NTU
  • UV transmittance > 75%
