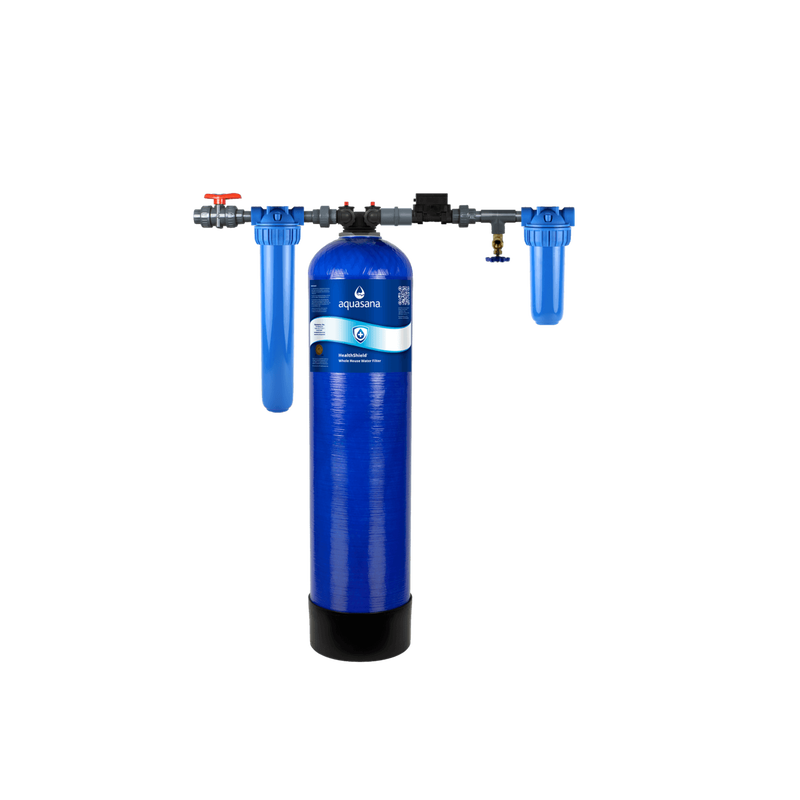

HealthShield™
The first whole home filtration system to reduce up to 99.9% of 61 contaminants including PFAS*, VOCs, pharmaceuticals, chlorine, and chloramines for healthier water from every tap.
-
In Stock
A Healthier Home Starts at the Source
Water You Can Trust
Industry-leading performance from the first whole home system tested and certified to reduce PFAS*, VOCs, and more. WQA tested and certified to NSF/ANSI Standards 53 and 401.
Great-Tasting Water
Reduces chlorine, chloramines, and other impurities that affect taste and smell — so every drop tastes cleaner and more refreshing.
Clean Water, Clean Home
By reducing VOCs at the source, HealthShield™ supports a healthier indoor environment by helping to prevent chemical vapors from entering the air during cooking or showering.
Better Cooking Starts With Better Water
Cleaner water enhances natural flavors for tastier meals — your new secret ingredient in the kitchen.
Softer Skin & Healthier Hair
Reduced chlorine and chloramines mean noticeably softer skin and more moisturized hair with every shower.
Cleaner Clothes That Last Longer
Filtered water helps protect fabrics from chlorine and chloramines damage, keeping clothes looking newer, longer.

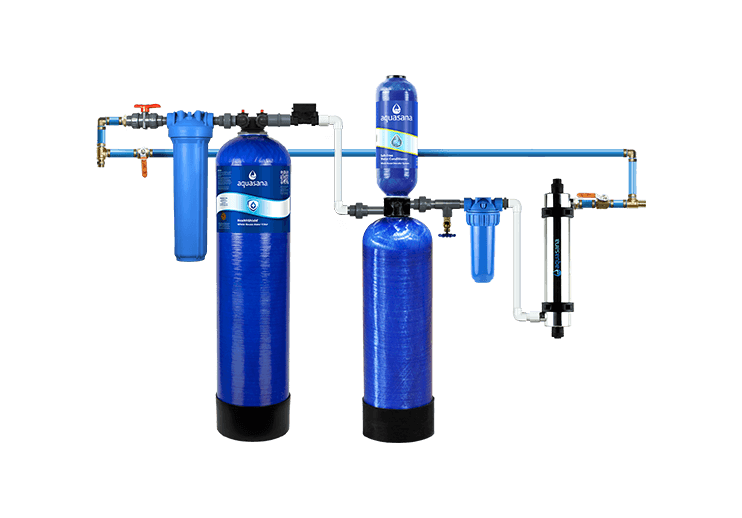

How It Works
Engineered for Your Health
The first whole home filtration system to reduce 61 contaminants for 165,000 gallons or up to two years — delivering unparalleled, long-lasting protection from every tap at just a penny a gallon.
Engineered for Your Health
The first whole home filtration system to reduce 61 contaminants for 165,000 gallons or up to two years — delivering unparalleled, long-lasting protection from every tap at just a penny a gallon.
This system comes with a 2-Year Limited Warranty and a 90-Day Satisfaction Guarantee so you can be confident in your purchase.
WQA tested and certified to NSF/ANSI Standards 53, 401, and CSA B483.1 for the claims specified on the Performance Data Sheet.
Internally tested to reduce chlorine and chloramines.
Recommended UV is NSF certified to NSF/ANSI, Class B. Sterilizes up to 99.8% of bacteria and nonpathogenic viruses.
Whole Health, Pure Performance
Meet HealthShield™, our most advanced whole home filtration system yet. Engineered to deliver industry-leading protection from every tap, this high-performance system treats up to 165,000 gallons or approximately 2 years of household water. HealthShield™ is the first whole house system tested and certified to both NSF/ANSI Standards 53 and 401 to:
- Reduce 99.9% of PFAS* Forever Chemicals (PFOA, PFOS, PFNA, PFHxS, and PFHpA)
- Tackles 99.8% of VOCs including industrial chemicals, solvents, and fuel additives like benzene, chloroform
- Reduce herbicides, pesticides, pharmaceuticals, and BPA
It is also internally tested to reduce up to 97.49% of chlorine and chloramines. On well water? Our recommended UV filter add-on tackles the extra challenges of well water by sterilizing up to 99.8% of bacteria and nonpathogenic viruses.

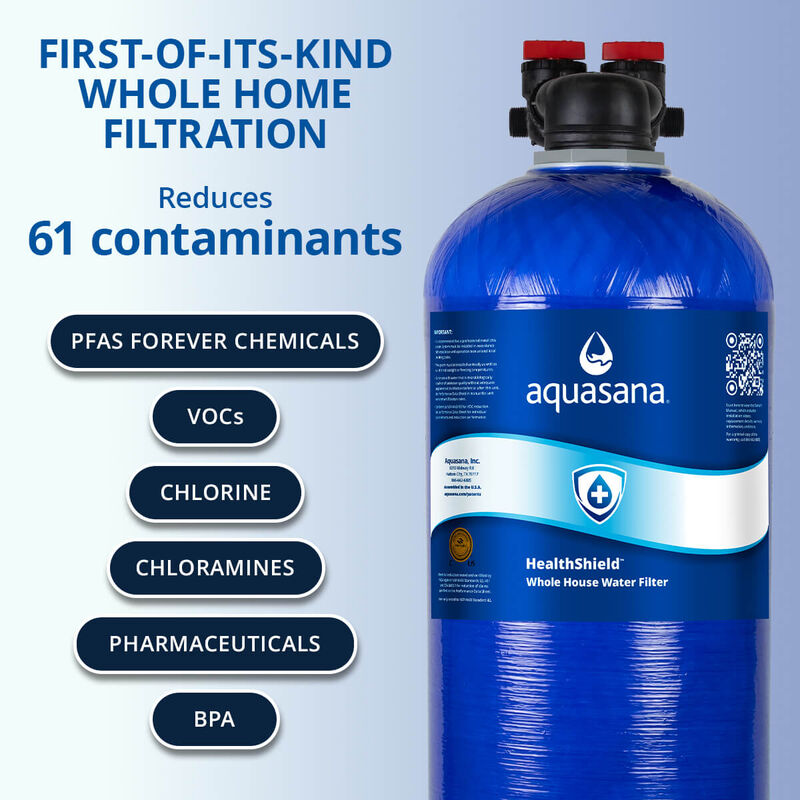

Designed with powerful contaminant reduction technology, HealthShield™ reduces 61 contaminants in all, helping safeguard your entire home’s water supply. From drinking and cooking to bathing and laundry, you’ll enjoy cleaner, great‑tasting water throughout your home. Because these chemicals can evaporate during cooking and showering, reducing them at the source doesn’t just improve your water — it helps protect the air inside your home, too.

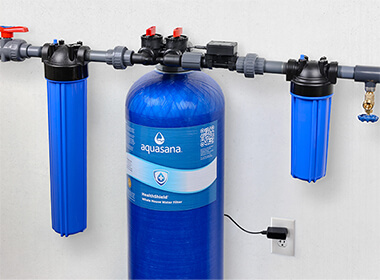

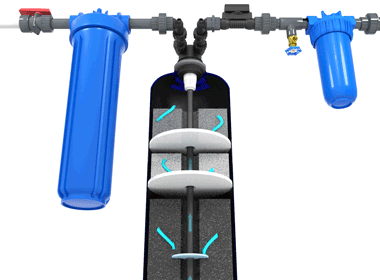

HealthShield™ features a space‑saving single‑tank design that maximizes water contact time for stronger contaminant reduction. Its specialized media blend features granular activated carbon with a highly porous structure specifically engineered to adsorb challenging impurities as water flows through, delivering efficient contaminants reduction for 165,000 gallons.

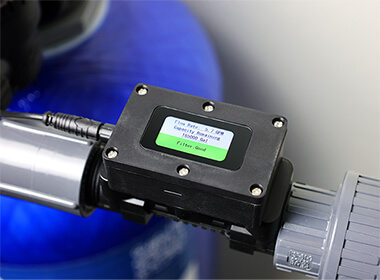

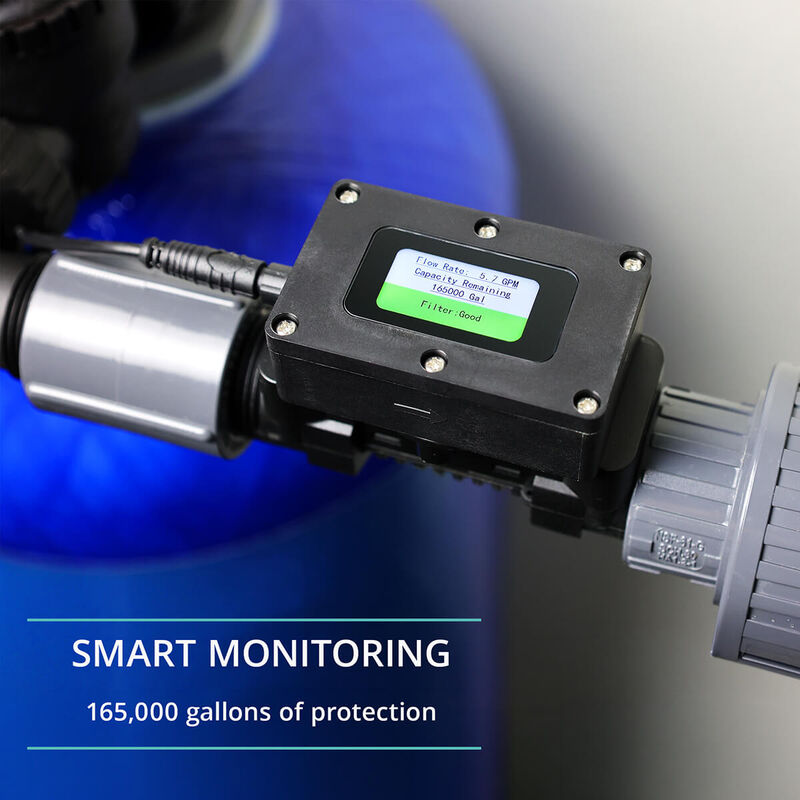

The smart, color‑coded touchscreen monitor provides real‑time usage tracking and service alerts — so you always know when it’s time to replace your filter.

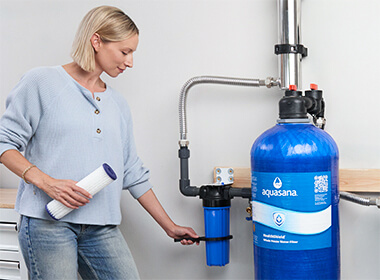

Designed for simplicity, HealthShield™ allows for simple filter replacements — without the need for ongoing service plans or complicated maintenance.

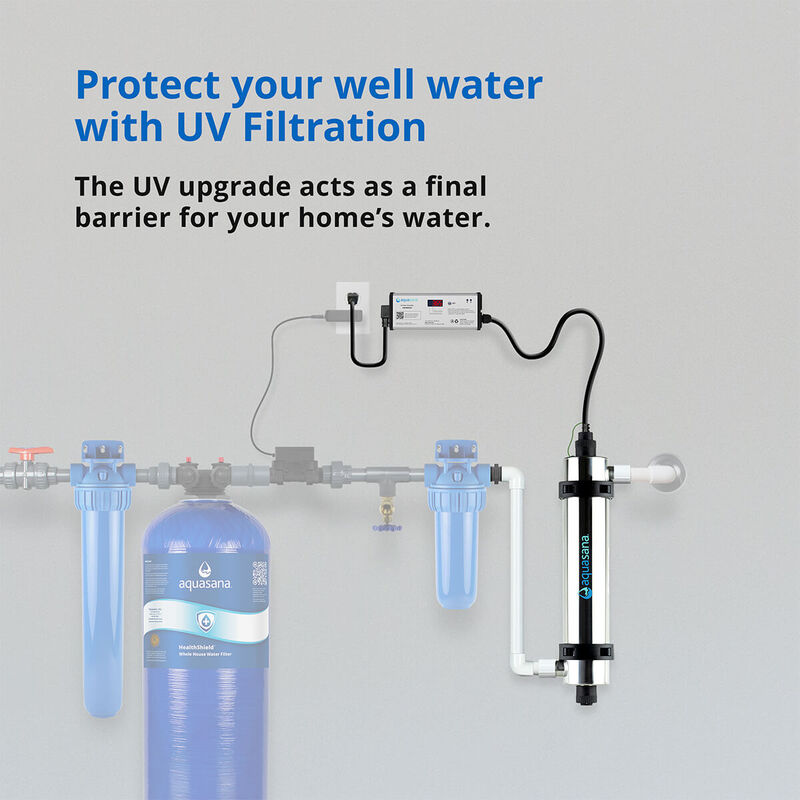

To build a complete water solution, HealthShield™ offers several powerful system upgrades. The UV Filter upgrade (NSF tested and certified to NSF/ANSI Class B), powerfully sterilizes up to 99.8% of bacteria and nonpathogenic viruses. We consider the UV add-on a “must have” for homes on well water. Our Salt-Free Water Conditioner helps reduce scale buildup without using salt or harsh chemicals. You can further customize your setup with the Low Maintenance Pre-Filter (lasting 3X longer than standard) and the Pro-Grade Bypass Install Kit, which allows fast filter changes without shutting off your home’s water supply.
Aquasana HealthShield™. Protection that flows through your home.
*PFOA, PFOS, PFNA, PFHxS, and PFHpA to below 4 parts per trillion
System Operating Temp Range: 40-100°F
System Max Operating Pressure: 100 psi

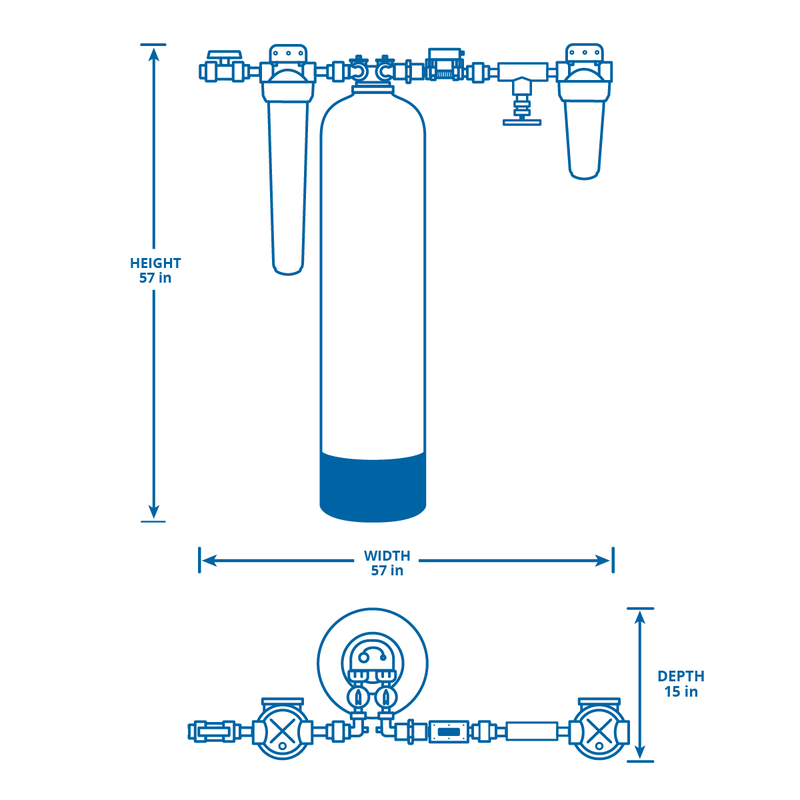

- Length:
- Height:
- Diameter:
- Peak Flow Rate (GPM):
- Rated Flow Rate* (GPM):
- Capacity (Years):
- Capacity (Gallons):
- Please see chart below
- 57"
- 12"
- 11.2
- 5.7
- Approx. 2
- 165,000
- 57"
- 11"
- 15.3
- 7.0
- 10
- 1,000,000
- 15"
- 4"
- 15.0
- 6.0
- 1
*Contaminant reduction testing and resulting values are based on Rated Flow Rates indicated above. Values will vary based on faster or slower flow rates.
HealthShield™
HealthShield™ + Bypass
HealthShield™ + SFWC
HealthShield™ + SFWC + Bypass
HealthShield™ + UV
HealthShield™ + UV + Bypass
HealthShield™ + SFWC + UV
HealthShield™ + SFWC + UV + Bypass
HealthShield™ + Low Maint
HealthShield™ + SFWC + Low Maint
HealthShield™ + UV + Bypass + Low Maint
HealthShield™ + UV + Low Maint
HealthShield™ + Bypass + Low Maint
HealthShield™ + SFWC + UV + Low Maint
HealthShield™ + SFWC + Bypass + Low Maint
HealthShield™ + SFWC + UV + Bypass + Low Maint
20"
Pre-Filter Replacement – 3
Pack
Replace every 2 months
Prevents dirt and sediment particles from entering and clogging the main filter unit
Post-Filter Replacement
Replace every 6
months
Reduces any remaining sediment and organic particles
Low
Maintenance Pre-Filter
Replacement
Replace every 6
months
Reduces any remaining sediment and organic particles, while lasting 3X longer
UV
Replacement Lamp
Replace
every 12
months
Uses ultraviolet light to sterilize up to 99.8% of bacteria and viruses
Tall
Salt-Free Water Conditioner
Replacement
Replace every 10 years
Protects appliances and pipes from scale buildup
-
Learn how HealthShield™ delivers cleaner, safer water -
How to Install a HealthShield™ Whole House System -
Upgrade your home with HealthShield™
- 1. What's the flow rate of the HealthShield™ whole house filter?
-
The HealthShield™ whole house filter has a flow rate of 5.7 gallons per minute (gpm). True flow rates will vary with influent water pressure. Most homes use only 2 to 3 GPM the majority of the time.
The performance indicator included in the HealthShield™ installation kit displays the current flow rate running through the system. The PID display will also show the remaining capacity in gallons.
- 2. What type of filtration media does the HealthShield™ system use?
-
HealthShield™ system uses a specialized blend of three advanced media layers designed to target a wide range of contaminants.
The first filtration layer is engineered for highly efficient reduction of chlorine and chloramines to improve water taste and odor. The second layer is designed to help enhance PFAS* reduction, including difficult-to-reduce short-chain PFAS compounds. The third layer helps reduce additional contaminants such as VOCs, ibuprofen, BPA, and PFAS for more comprehensive whole home water filtration.
- 3. What percentage of chlorine does the HealthShield™ remove and for how long?
- The HealthShield™ is internally tested to remove 97.4% of chlorine for 165,000 gallons.
- 4. What are PFAS “Forever Chemicals” and does the HealthShield™ system reduce them?
-
According to the U.S. Environmental Protection Agency, PFAS (per- and polyfluoroalkyl substances) are a large group of widely used, long-lasting chemicals that break down very slowly over time. Because of their durability and widespread use, PFAS are now found throughout the environment — including in water, air, soil, and even in fish and other wildlife across the globe.
These chemicals have been used in a wide range of consumer, commercial, and industrial products, which has led to their presence in many food products and in the blood of both people and animals worldwide.
There are thousands of different PFAS compounds, making them complex to study and regulate. While research is ongoing, some scientific studies have linked exposure to certain PFAS to potential harmful health effects in humans and animals.
PFAS chemicals are nicknamed “forever chemicals” because they don't break down naturally, persisting in the environment and accumulating in the human body over time.
The HealthShield™ system is WQA tested and certified to NSF/ANSI Standard 53 to remove 99.9% of PFAS* to below 4 parts per trillion.
*PFOA, PFOS, PFNA, PFHxS, and PFHpA
- 5. What are chloramines and does the HealthShield™ system remove it?
- Chloramines are a disinfection agent comprised of chlorine and ammonia used as an alternative to chlorine in some city water treatment facilities. The HealthShield™ whole house system is internally tested to remove 97.49% of chloramines.
- 6. What are VOCs and does the HealthShield™ system reduce them?
-
According to the U.S. Environmental Protection Agency, VOCs, also known as “Volatile organic compounds,” are chemicals that easily evaporate into the air from everyday products like paints, cleaning supplies, fuels, and building materials. They are commonly found indoors, often at higher levels than outdoors, and can come from thousands of household and industrial products.
Some VOCs may have short- or long-term health effects, which is why they are a common concern in both indoor air and water quality.
The HealthShield™ system is WQA tested and certified to NSF/ANSI Standard 53 to remove 99.8% of VOCs.
- 7. Does the HealthShield™ system need electricity?
- Yes, this system requires a 120V/60Hz power outlet for the performance indicator, located within ten feet of the unit to ensure the power cord can reach.
- 8. How do I read the performance indicator (PID)?
-
HealthShield™ has a color-coded display for easy evaluation of maintenance needs. When the system is at 10-100% remaining capacity, the lower part of the display will be green, and will require you to touch the screen to activate it. Once the system has 0-10% remaining capacity, the display will always be on, and the lower part will be yellow. Once the system has reached capacity, the display will always be on, and the lower part of the display will be red.
The PID display will also show the remaining capacity in gallons and the current flow rate of water through the system.
- 9. How do I know when it's time to change my HealthShield™ tank?
- The HealthShield™ installation kit includes a PID (performance indicator) that has a color-coded display that tells you when it's time to replace your filter. When the tank is between 0%-10% of the remaining capacity, the display will show yellow. Once the tank is ready for replacement, the display will show red. The PID will also display the remaining capacity in gallons.
- 10. What do I do with a used HealthShield™ tank that is ready to be replaced?
-
Once your HealthShield™ tank has reached the end of its service life and is ready for replacement, it is generally classified as household waste under current federal regulations and can typically be disposed of through standard household waste disposal methods without special handling requirements.
Because disposal regulations can vary by location, we recommend checking with your state or local department of environmental protection or waste management authority for guidance on any applicable local disposal requirements or regulations.
- 11. Why are whole house water filters considered “point of entry” systems?
- The filtration system is installed at the point where the main water supply enters the home, delivering filtered water throughout your home.
- 12. Do I need a licensed plumber to install a whole house filter?
- We strongly recommend using a licensed plumber since they carry insurance to cover any damages caused by an installation error. This will give you the security that the work was done properly, and peace of mind in knowing that the installation is backed up by the plumbing company's insurance plan. State and local regulations may require installation by a licensed plumber or water treatment professional.
- 13. Will I experience a drop in pressure after installing a whole house water filter?
- Most homeowners should not notice a significant drop in water pressure after installing the HealthShield™ whole house water filter when operating within the system's rated flow range.
- 14. What is the difference between city water and well water?
- City water is treated by municipalities to reduce bacteria, viruses, and common contamination sources. It's also regulated per the Environmental Protection Agency's (EPA) guidelines. Well water comes from an underground aquifer that is pumped into a home and is typically untreated. Well water may contain higher than average levels of iron or sulfur, or other contaminants. Our recommended UV filter add-on tackles the extra challenges of well water by sterilizing up to 99.8% of bacteria and nonpathogenic viruses.
- 15. I just installed my filter. Why does my water look milky or cloudy?
- After you install your whole house filter, you may notice your water is cloudy. Cloudy or white water is likely a result of air in the pipes and filtration media. This trapped air is what causes the water to have a cloudy appearance. This is very common and not harmful. The trapped air can take a week to a month to completely resolve.
- 16. Does this system need a drain line?
- No, the HealthShield™ system does not require a drain line as it is a non-backwashing system. This means it does not waste water during normal operation.
- 17. Do I need to
disinfect my water supply?
- It is recommended to disinfect all water supplies that are not protected by a municipal water (city water) source. By providing your own disinfection, you are ensuring the safety of your water supply for you and your family. Our recommended UV filter add-on provides peace of mind by tackling up to 99.8% of bacteria and nonpathogenic viruses.
- 18. Do Whole House Water Filters remove bacteria or viruses?
- To tackle these contaminants, we recommend our UV filter that is NSF tested and certified to NSF Standard 55, Class B and sterilizes up to 99.8% of bacteria and nonpathogenic viruses.
- 19. What is hard water?
-
Hard water is a count of mineral content. It occurs when dissolved minerals clump together to produce scale that can harm your internal pipes, plumbing, and home appliances. Hard water contains a higher-than-average amount of dissolved minerals (primarily calcium and magnesium), and a higher concentration of multivalent cations (Ca2+ and Mg2+).
Water hardness is the amount of dissolved calcium and magnesium in the water. Higher hardness values can result in mineral deposit and scale issues in your plumbing, fixtures, and home appliances.
- 20. Does having hard water mean it is contaminated?
- No, hard water does not mean water is contaminated. It is a measurement of the dissolved calcium and magnesium present in your water. Most water sources in the USA are considered hard.
- 21. Is hard water safe to drink?
- Hard water can be city water or well water meaning it may or may not be pre-treated. The minerals that make water "hard" are not considered a health risk, but hard water can still contain additional contaminants that are not safe for consumption.
- 22. What is soft water and how do I know if my home has it?
- Soft water is water that has either been treated by a water softener or naturally contains less hard minerals. The most recognizable trait of "soft" water is how much more soap lathers, as opposed to hard water. Soap lathers less due to the higher concentration of minerals. Water softeners reduce the negative effects of dissolved minerals in water that can clump together and produce scale buildup.
- 23. Does having soft water mean it is clean water?
- Soft water does not mean clean water. Your water can be soft and still have contaminants present in the water.
- 24. Is soft water safe to drink?
- Yes, soft water is considered potable. Drinking water from a sodium-based softener increases your daily intake of sodium, which can lead to health problems in sodium-sensitive individuals. Please keep in mind that a water softener is not a water filter. A water softener does not remove contaminants present in your water.
- 25. What is a salt-based water softener?
- A salt-based water softener is a softener system designed to remove/reduce calcium and magnesium from the water by exchanging it with sodium. This is done through an ion exchange process that alters the molecular structure of the calcium and magnesium from a divalent ion to a univalent ion, making the water "softer."
- 26. How does a water softener differ from a water conditioner?
-
Water conditioners use several alternate technologies, like magnetic, electronic, or catalytic methods, to change the way minerals in water behave, helping to prevent scale buildup in pipes. However, these methods do not reduce the water's hardness minerals. Since a water softener reduces the hardness minerals, you get added benefits including reduces spotting, improved soap and detergent effectiveness, and more.
If you're unsure if your home's water needs a water softener or a water conditioner, please reach out to one of our Water Experts at 866-662-6885.
